Measurement & Methodology

Measurement & Methodology

The methods/instruments had been used in the present study were:

  • Anthropometric grid
    An anthropometric grid with platform was designed and patented, measuring 213.36 cm x 274.32cm in order to measure 25 body dimensions both standing and sitting posture. The anthropometric grid method been used in the previous study by Siti Nurani, Rosnah, Raemy, Mohd Rizal, & Hari Krishnan (2015).
  • Anthropometer and caliper
  • Measuring tape
  • Handgrip dynamometer
  • Pinch dynamometer
  • Back-Leg-Chest dynamometer

The methods/instruments had been used were:

  • Anthropometric grid
    An anthropometric grid with platform was designed and patented, measuring 213.36 cm x 274.32cm in order to measure 25 body dimensions both standing and sitting posture. The anthropometric grid method been used in the previous study by Siti Nurani, Rosnah, Raemy, Mohd Rizal, & Hari Krishnan (2015).
  • Anthropometer and caliper
    Martin’s standard anthropometer set including sliding caliper were used to measure 25 body dimensions both sitting and standing posture.
  • Measuring tape
    Standard measuring tape with length of 150cm was used to measure six body circumferences. The method of measuring were based on Chester, Rys, & Konz, (2002) and WHO expert Consultation (2008)
  • Static strength measurement
    Three static measurements were measured. Pinch strength by using Baseline® Hydraulic Pinch Gauge (Chandra et al., 2007), handgrip strength by using Baseline® Digital Smedley dynamometer (Chandra et al., 2007) and torso lift strength by using Baseline® Back- Leg-Chest dynamometer (Caffin et al., 1978; Mital et al., 2000).

NIOSH 2020 Measurement Points:

Standing Posture Sitting Posture Anthropometer Static Strength
Vertical grip reach Vertical reach / Seated overhead reach Elbow Fingertip length Handgrip strength test
Fingertip reach height Sitting height (erect) Shoulder-elbow length Pinch Grip strength test
Stature Eye height Cervical height Isometric back strength test
Eye height Shoulder height Buttock Popliteal length
Shoulder height Elbow height Popliteal Height
Armpit height (Axilla) Knee Height Circumference
Elbow height Hip breadth Head circumference
Hip height Thigh clearance Arm circumference
Knuckle height Thigh-thigh breadth Wrist circumference
Fingertip height Knee-knee breadth Waist circumference
Tibial height Ankle height Hip circumference

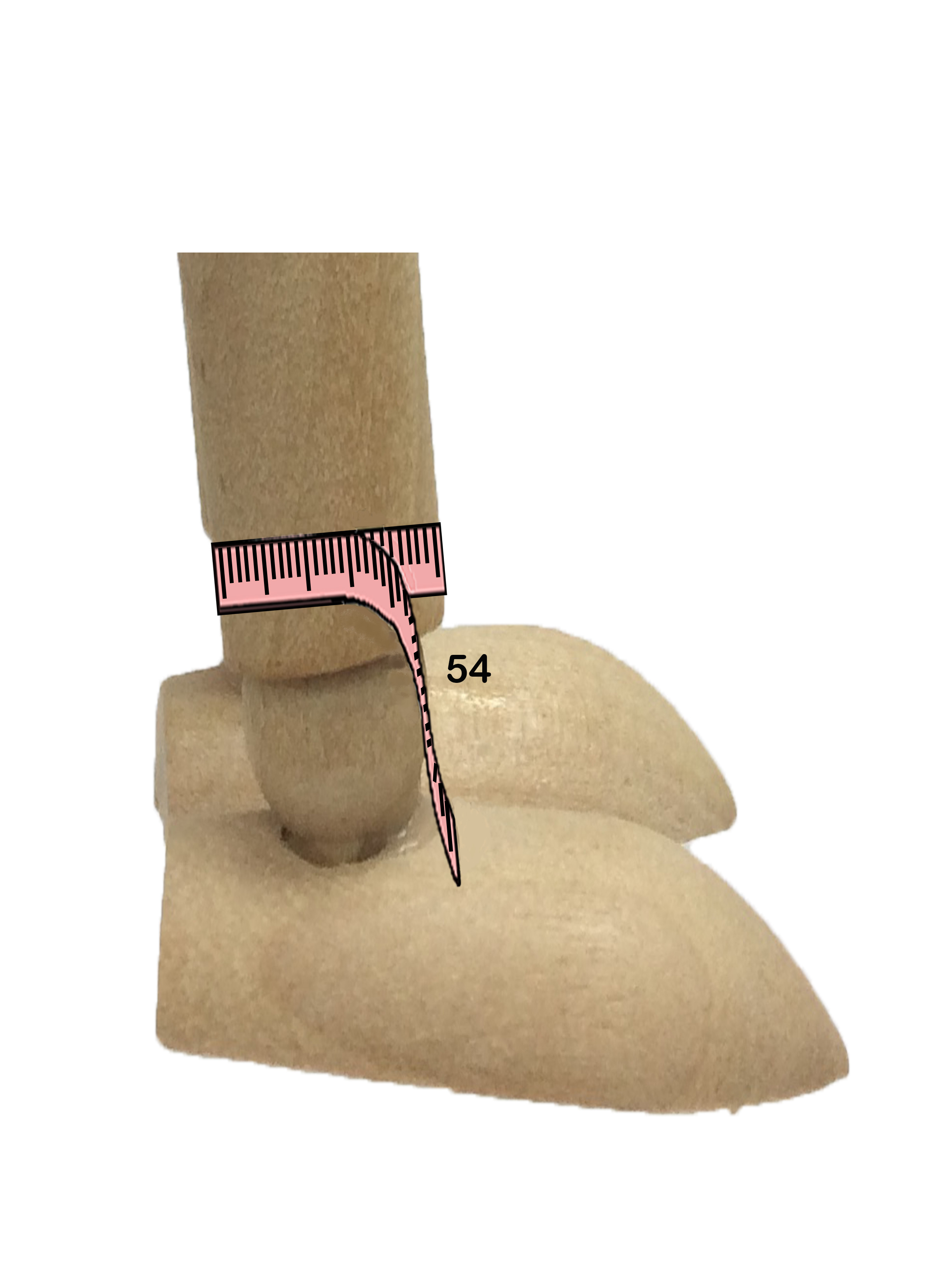

Biacromial breadth Foot breadth (R) Ankle circumference
Bideltoid breadth Foot breadth (L)
Elbow span Foot length (R)

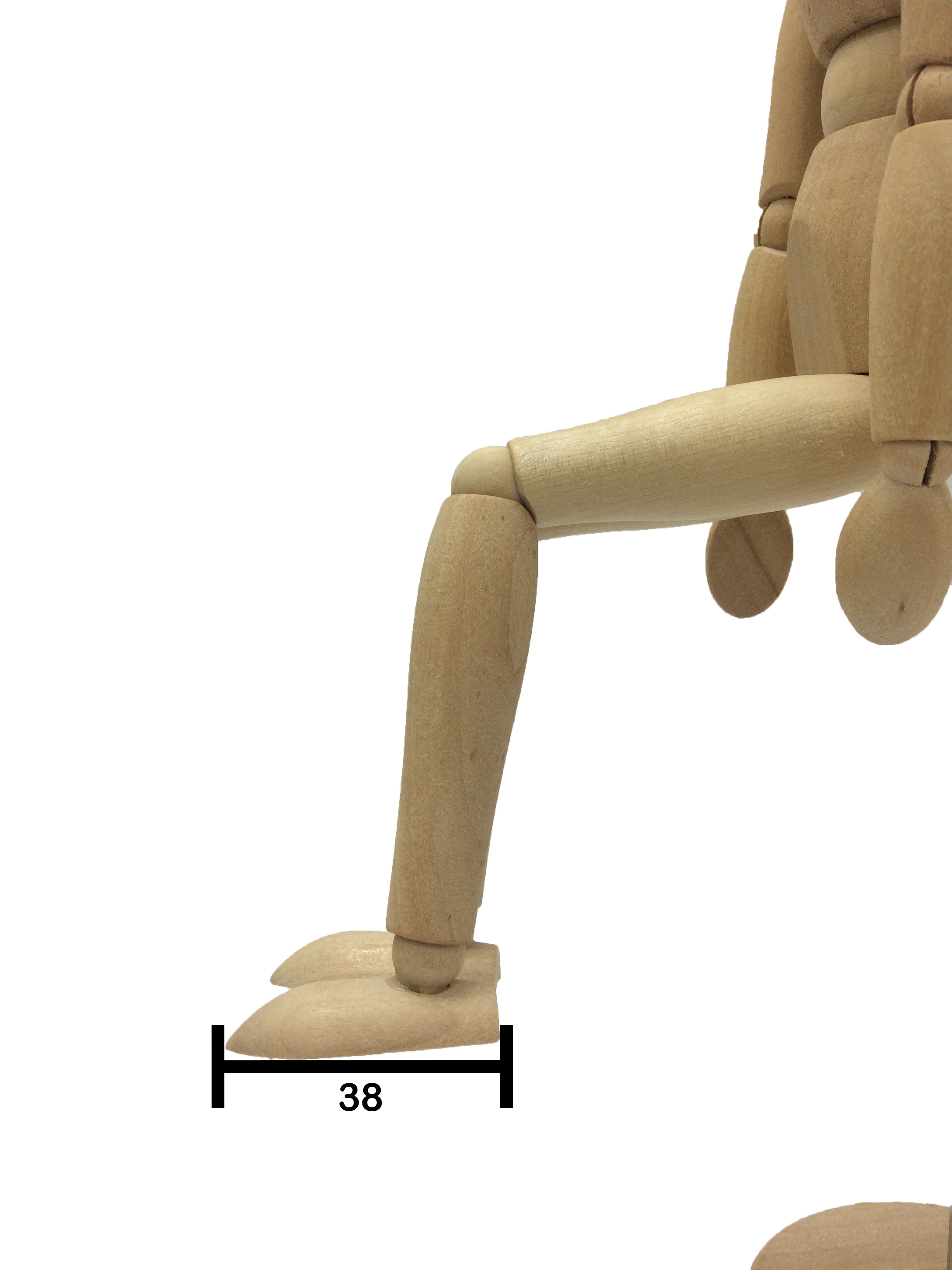

Arm Span Foot length (L)
Grip Reach Hand length (R)
Hand length (L)
Hand breadth (across thumb) (R)
Hand breadth (across thumb) (L)
Palm length (R)
Palm length (L)
Palm breadth (R)

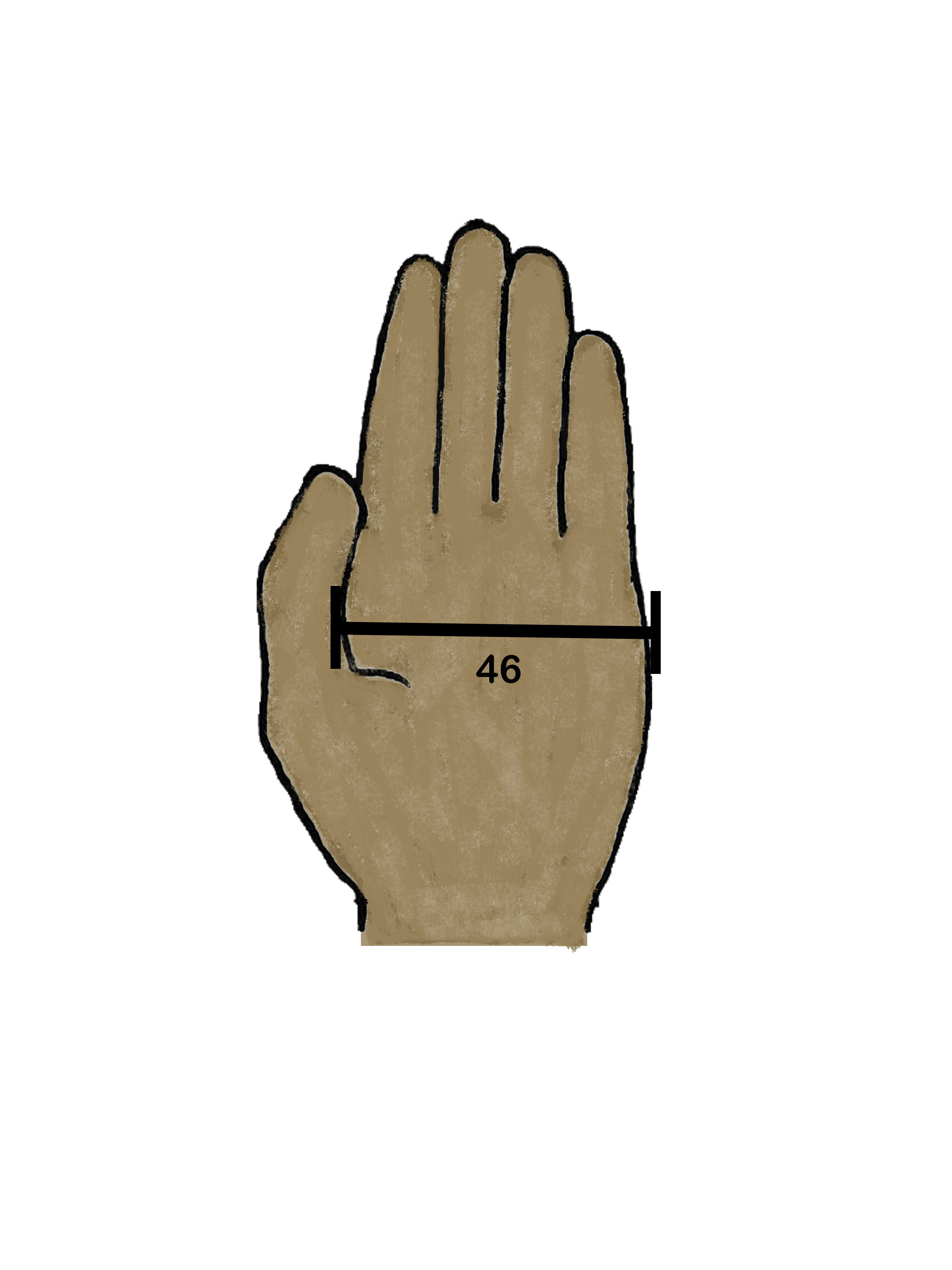

Palm breadth (L)
Head length
Head breadth
Hip breadth
Chest depth
Body Weight (kg)
